Problem
Machining problem to solve
Complex automotive part geometryTight tolerance controlStable batch production
Case Study

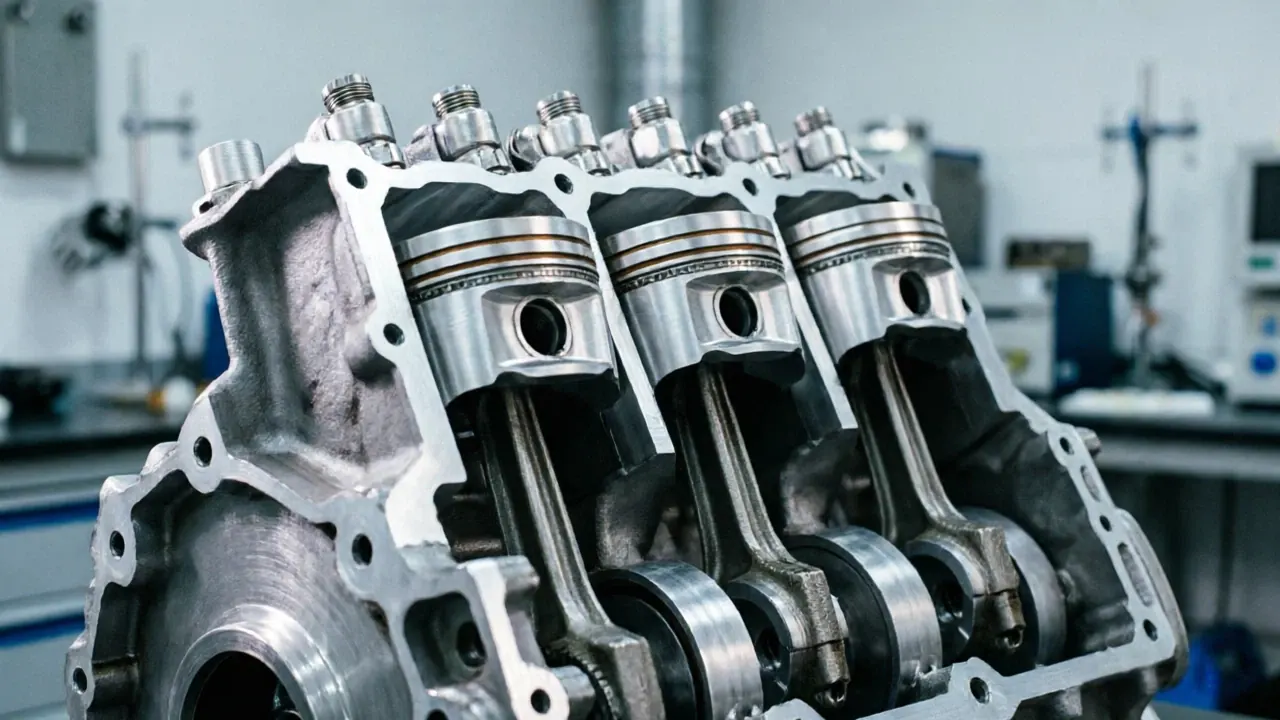

Automotive Case Study 16 / 20Engine Block Machining Case Study
The engine block is often called:
engine block machining case studyautomotive cnc machining case studycnc machine for automotive parts
Case Overview
Core project data for this machining case.
Industry Automotive
Product Engine Block
Material Aluminum A356-T6 / Cast Iron HT250 / CGI
Process Casting + Heat Treatment + CNC Machining
Machine Model HYR VMC1165
Tolerance +/-0.01 mm
Surface Finish Ra0.4 ~ Ra0.8
Production Capacity Project based
Solution
HYR-CNC machining plan
The customer is a Tier-1 automotive engine supplier producing:Inline 3-cylinder enginesInline 4-cylinder enginesV6 enginesHybrid enginesTurbocharged engines
Machine Used
Recommended machine configuration
Machine: HYR CNC machining center selected according to part size, material and tolerance
Process: Rough machining, semi-finishing, finish machining and inspection based on the document case
Accuracy Control: Fixture planning, deformation control, stable toolpath strategy and CMM inspection
Cost Method: Published with existing website assets first to keep implementation cost low
Process
Timeline from raw material to inspection.
01 Typical manufacturing process:
02 Casting
03 Heat Treatment
04 Shot Blasting
Full Case Article
Machining background, difficulty and solution logic.
Quick Facts
Item Details Industry Automotive Product Engine Block Material Aluminum A356-T6 / Cast Iron HT250 / CGI Manufacturing Process Casting + Heat Treatment + CNC Machining Machine HYR VMC1165 Tolerance +/-0.01 mm Cylinder Bore Roundness ≤0.005 mm Deck Flatness ≤0.02 mm Surface Finish Ra0.4 ~ Ra0.8 Application Gasoline Engines, Diesel Engines, Hybrid Systems
Introduction
The engine block is often called:
It is the most important structural component in an internal combustion engine.
Every critical system is built around the engine block:
The engine block must withstand:
Therefore:
Its machining quality directly determines:
Modern engine blocks are among the most difficult parts to machine in the automotive industry.
The Backbone of the Engine Cylinders Crankshaft Pistons Cooling system Lubrication system Cylinder head Timing system Transmission connection Combustion Pressure ↓ Thermal Expansion ↓ Mechanical Vibration ↓ Continuous Cyclic Loads Engine power Fuel efficiency Noise & vibration Oil consumption Engine life
Customer Background
The customer is a Tier-1 automotive engine supplier producing:
Annual production:
The customer encountered:
HYR CNC developed a dedicated machining solution optimized for high-volume engine block production.
Inline 3-cylinder engines Inline 4-cylinder engines V6 engines Hybrid engines Turbocharged engines 100,000+ Engine Blocks Cylinder bore roundness issues Deck flatness instability Main bearing bore deviation Long machining cycles High scrap rates
Industry Background
The automotive powertrain industry continues to evolve.
Smaller Engines, Higher Power
Modern engines are shifting:
Examples:
As combustion pressures rise:
Engine blocks require:
Large Displacement ↓ Turbocharged ↓ Small Displacement ↓ High Power Density 1.5T engines 2.0T engines Hybrid powertrains Better rigidity Higher machining accuracy Improved thermal stability
Lightweight Materials
Traditional:
Advantages:
However:
Aluminum is softer and more sensitive to deformation.
Machining becomes more challenging.
Cast Iron ↓ Aluminum Alloy 30~50% lighter Better heat dissipation Improved fuel economy
Hybrid Powertrains
Hybrid engines require:
Therefore:
Complex machining becomes standard.
Compact engine blocks Integrated cooling channels Better NVH performance
Aluminum A356-T6
Advantages:
Applications:
Lightweight Excellent castability Superior thermal conductivity Passenger vehicles Hybrid systems Turbocharged engines
Cast Iron HT250
Advantages:
Applications:
Excellent wear resistance High rigidity Low cost Diesel engines Commercial vehicles Heavy-duty engines
CGI (Compacted Graphite Iron)
Advantages:
Applications:
High strength Better fatigue resistance Excellent thermal stability High-performance diesel engines Turbocharged engines
Manufacturing Process
Typical manufacturing process:
Among all operations:
Cylinder bores and main bearing bores require the highest accuracy.
Casting ↓ Heat Treatment ↓ Shot Blasting ↓ Leak Testing ↓ Rough Machining ↓ Semi Finishing ↓ Cylinder Bore Machining ↓ Deck Surface Machining ↓ Main Bearing Machining ↓ Thread Hole Machining ↓ Honing ↓ Cleaning ↓ Inspection ↓ Assembly
Why CNC Machining Is Necessary
Casting creates:
But casting cannot achieve:
Critical features must be precision machined.
Internal cooling channels Oil passages Rough geometry Cylinder bore accuracy Deck flatness Bearing bore alignment
Cylinder Bores
Cylinder bores guide piston movement.
Requirements:
Poor machining causes:
Roundness ≤0.005 mm Cylindricity ≤0.008 mm Oil consumption Power loss Piston wear
Deck Surface
The deck surface seals:
Requirements:
Poor machining may cause:
Cylinder head Combustion chamber Flatness ≤0.02 mm Ra0.8 Coolant leakage Combustion leakage Oil leakage
Main Bearing Bores
Requirements:
Poor machining causes:
Coaxiality ≤0.01 mm Crankshaft vibration Bearing wear Engine noise
1. Large Complex Structures
Typical engine block size:
Weight:
Challenges:
400 mm ↓ 900 mm 30 kg ↓ 120 kg Fixture rigidity Thermal deformation Dynamic vibration
2. Cylinder Bore Precision
Requirements:
Challenges:
Roundness ≤0.005 mm Tool wear Thermal expansion Cutting vibration
3. Numerous Machining Features
Typical engine block:
Challenges:
150+ Machined Features 80+ Holes 20+ Threads Tool management Machining efficiency Process stability
HYR CNC Solution
HYR recommended the VMC1165 Vertical Machining Center.
Large Travel Capacity
Travel:
Suitable for:
Axis Travel X 1100 mm Y 650 mm Z 650 mm Inline engines V engines Hybrid powertrains
High Torque Spindle
Spindle:
Advantages:
BT50 8000 rpm Excellent cast iron machining High metal removal rate Stable cutting performance
Heavy-Duty Structure
Features:
Benefits:
Reinforced cast iron bed Large-span guideways High rigidity column Better bore accuracy Improved flatness Reduced vibration
Automatic Tool Changer
24-tool ATC.
Supports:
Improving machining efficiency.
Face milling Boring Reaming Thread milling Cylinder boring
Step 1
Machine:
Remove casting allowance.
Rough Milling Reference surfaces External structures
Step 2
Machine:
Semi Finishing Water jackets Oil channels Mounting faces
Step 3
Requirement:
Machine:
Cylinder Bore Machining Roundness ≤0.005 mm Cylinder bores Honing allowance
Step 4
Requirement:
Machine:
Deck Surface Machining Flatness ≤0.02 mm Cylinder head interface
Step 5
Requirement:
Machine:
Main Bearing Machining ≤0.01 mm Crankshaft supports Bearing seats
Step 6
Machine:
Hole Machining Oil holes Thread holes Mounting holes
Step 7
Improve:
Honing Surface finish Oil retention Cylinder wear resistance
Step 8
Inspect:
Guarantee engine quality.
Final Inspection Cylinder bores Deck surfaces Main bearings
Cutting Parameters
Typical machining parameters:
Item Value Spindle Speed 6000 rpm Feed Rate 1800 mm/min Tool Material Carbide Coolant Emulsion Depth of Cut 1.0 mm Surface Finish Ra0.4~Ra0.8
Quality Inspection
Every engine block undergoes strict inspection.
Cylinder Bore Inspection
Requirement:
Inspect:
Roundness ≤0.005 mm Roundness Cylindricity Surface finish
Deck Surface Inspection
Requirement:
Inspect:
Flatness ≤0.02 mm Flatness Roughness Surface waviness
Leak Testing
Inspect:
Requirement:
Water jackets Oil channels 100% Leak Free
CMM Inspection
Verify:
Ensuring complete dimensional accuracy.
Hole positions Bore alignment Geometric tolerances
Results
After adopting HYR CNC machining solutions:
The customer achieved:
Item Before After Bore Roundness 0.012 mm 0.005 mm Deck Flatness 0.05 mm 0.02 mm Surface Finish Ra1.6 Ra0.8 Cycle Time 65 min 42 min Scrap Rate 2.8% 0.4% Better engine performance Improved fuel efficiency Lower oil consumption Higher production efficiency Reduced manufacturing costs
HYR VMC850
Recommended for:
Turbocharger Housings Brake Components Small Engine Parts
HYR VMC1060
Suitable for:
Cylinder Heads Transmission Housings Differential Housings
HYR VMC1165
Ideal for:
Engine Blocks Large Structural Parts EV Battery Systems
Related Articles
What Is Surface Finish?
What Is CNC Milling?
Cylinder Head Machining Case Study Turbocharger Housing Machining Case Study Cast Iron Machining Guide
What is an engine block?
An engine block is the main structural component of an engine that houses cylinders, cooling channels and the crankshaft.
Which materials are commonly used?
Aluminum A356-T6, HT250 cast iron and CGI are widely used.
Why is CNC machining necessary?
Critical features such as cylinder bores, deck surfaces and bearing bores require precision machining beyond casting capabilities.
What cylinder bore accuracy is required?
Most modern engines require cylinder bore roundness of 0.005 mm or better.
Which CNC machine is recommended?
The HYR VMC1165 is an excellent solution for machining engine blocks and heavy automotive components.
Conclusion
Engine blocks are among the most demanding and valuable components in automotive manufacturing.
From cylinder bores and deck surfaces to cooling jackets and bearing bores, every critical feature requires precision CNC machining.
With high rigidity, excellent cast iron machining capability and stable dimensional accuracy, HYR CNC machining centers provide reliable and efficient solutions for engine block manufacturing.
HYR CNC continues to support global automotive manufacturers with advanced machining technology and customized powertrain production solutions.
Result
Before and after machining improvement.
| Item | Before | After |
|---|---|---|
| Result 1 | Before optimization | After adopting HYR CNC machining solutions: |
| Result 2 | Before optimization | Item |
| Result 3 | Before optimization | Before |
FAQ
Common buyer questions for this case.
What is this case about?
This article covers engine block machining requirements, challenges, process planning and CNC machine selection.
Which machine is recommended?
The final machine should be selected according to part size, material, tolerance, cycle time and fixture plan.
Can HYR-CNC support similar parts?
Yes. Send drawings, material, tolerance and volume so HYR-CNC can recommend a suitable machining proposal.
