High Rigidity Structure
The machine body uses high-quality cast iron and an optimized rib structure to improve vibration resistance during continuous machining.
Product Page V3.0
Trunnion 5 Axis Machining Center
High Precision CNC Machine for Modern Manufacturing

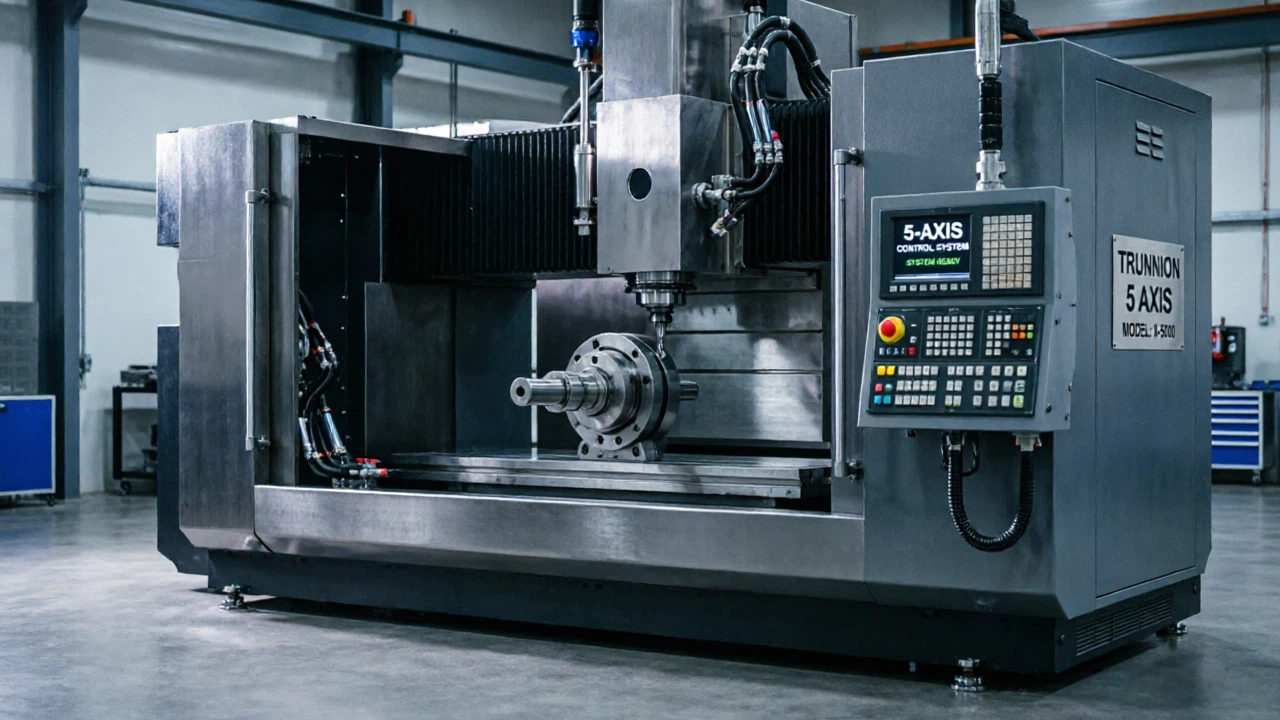

The Trunnion 5 Axis Machining Center is designed for high precision machining of Aerospace / Medical / Mold. Featuring a rigid cast iron structure, configurable spindle, automatic tool changer and reliable CNC controller options, the Trunnion 5 Axis delivers stable performance and high productivity for modern manufacturing.
X/Y/Z Travel: 650 / 500 / 500 mm Spindle: 12000 rpm, optional 15000 rpm Controller: Siemens / Fanuc Rotary Axis: Trunnion A/C table
X/Y/Z Travel 650 / 500 / 500 mm
Spindle 12000 rpm, optional 15000 rpm
Controller Siemens / Fanuc
Rotary Axis Trunnion A/C table
Quick Specifications
Key specifications buyers check first.
| X/Y/Z Travel | 650 / 500 / 500 mm |
|---|---|
| Spindle | 12000 rpm, optional 15000 rpm |
| Controller | Siemens / Fanuc |
| Rotary Axis | Trunnion A/C table |
| Tool Magazine | 30T / 40T ATC |
| Positioning Accuracy | +/-0.006 mm |
Features
Machine features for stable, repeatable production.
High Speed Spindle
Configurable spindle speed and taper options support steel, aluminum, mold and general machining with stable surface finish.
Automatic Tool Changer
Reliable ATC options reduce non-cutting time and help the machine handle multi-process machining in batch production.
Precision Ball Screw
Precision ball screws support smooth feed movement, stable positioning and long-term machining repeatability.
Linear Guideways
Low-friction guideways help improve dynamic response, rapid feed performance and surface quality.
High Accuracy
Stable structure, CNC control and precision feed components help maintain positioning accuracy for demanding parts.
Efficient Chip Removal
Chip conveyor and coolant options keep the work area clean and support reliable long-cycle machining.
Reliable CNC Controller
Fanuc, Siemens, Mitsubishi and other controller options are available for global service and operator familiarity.
Applications
Applications for Trunnion 5 Axis.
Automotive
Suitable for machining battery housing, gearbox, brake disc and motor housing.
View IndustryMold & Die
Suitable for machining injection mold, die casting mold and precision mold.
View IndustryAerospace
Suitable for machining titanium parts, structural components and aluminum alloy parts.
View IndustryMedical
Suitable for machining medical housings, surgical tools and precision fixtures.
View IndustryElectronics
Suitable for machining aluminum frames, heat sinks and precision electronic housings.
View IndustryGeneral Machinery
Suitable for machining plates, brackets, fixtures and mechanical components.
View IndustryMachine Configuration
Common configuration options.
CNC Controller
Fanuc 0i MF PlusSiemens 828DMitsubishi M80GSK or project based controller
Spindle
BT40BT50Direct drive spindleBelt drive spindle
Tool Magazine
24T ATC30T ATC40T ATC60T or larger ATC for HMC and gantry machines
Cooling
Oil coolerSpindle coolingCoolant through spindleFlood coolant system
Chip Removal
Chain chip conveyorAuger type conveyorChip cartCoolant filtration
Technical Specifications
Detailed machine specification table.
Travel
| X Axis | 650 |
|---|---|
| Y Axis | 500 |
| Z Axis | 500 mm |
Table
| Table / Pallet Size | Project based |
|---|---|
| T Slot | Standard T-slot, project based |
| Max Load | Project based |
Spindle
| Taper | 12000 rpm, optional 15000 rpm |
|---|---|
| Speed | 12000 rpm, optional 15000 rpm |
| Motor Power | Project based |
Feed
| Rapid Feed | Project based |
|---|---|
| Cutting Feed | Project based |
| Guideway | Linear guideway / box way, project based |
ATC
| Tool Capacity | 30T / 40T ATC |
|---|---|
| Tool Change Time | Project based |
| Max Tool Weight | Project based |
Accuracy
| Positioning Accuracy | +/-0.006 mm |
|---|---|
| Repeatability | Project based |
| Inspection Standard | Factory inspection report available |
Others
| Machine Weight | Project based |
|---|---|
| Machine Dimensions | Project based |
| Power Supply | 380V / 50Hz or customized |
Processing Samples
Typical parts and machining references.
Automotive Parts
- Material
- Aluminum 6061 / steel
- Tolerance
- +/-0.01 mm
- Surface Finish
- Ra 0.8~1.6
Aluminum Housing
- Material
- Aluminum 6061
- Tolerance
- +/-0.01 mm
- Surface Finish
- Ra 0.8
Mold Components
- Material
- P20 / H13 steel
- Tolerance
- +/-0.01 mm
- Surface Finish
- Fine milling or polishing
Steel Components
- Material
- Carbon steel / alloy steel
- Tolerance
- +/-0.015 mm
- Surface Finish
- Project based
Valve Body
- Material
- Cast iron / aluminum
- Tolerance
- +/-0.01 mm
- Surface Finish
- Sealing surface controlled
Aerospace Parts
- Material
- Aluminum / titanium alloy
- Tolerance
- +/-0.008 mm
- Surface Finish
- Ra 0.4~0.8
Medical Parts
- Material
- Stainless steel / titanium
- Tolerance
- +/-0.008 mm
- Surface Finish
- Fine surface finish
Precision Fixtures
- Material
- Aluminum / steel
- Tolerance
- +/-0.01 mm
- Surface Finish
- Stable flatness
Optional Accessories
Accessories to match production requirements.
Renishaw Probe
Workpiece probing improves setup speed, alignment and in-process inspection.
Tool Setter
Automatic tool setting reduces manual measurement time and tool length errors.
4th Axis
Rotary axis options support multi-side machining and fewer setups.
Coolant Through Spindle
CTS improves chip evacuation and deep-hole machining performance.
Mist Collector
Mist collection helps improve workshop cleanliness during high-speed machining.
Oil Skimmer
Oil skimming helps keep coolant cleaner for stable production.
Product Video
Trunnion 5 Axis video reference.
Video content can include machine running, tool change, heavy cutting, surface finish inspection and customer factory applications.
Customer Case
Aerospace Titanium Structural Parts
- Material
- Titanium Alloy
- Machine
- Trunnion 5 Axis
- Accuracy
- +/-0.01 mm
- Cycle Time
- Project based
FAQ
Common questions about Trunnion 5 Axis.
What is Trunnion 5 Axis?
Trunnion 5 Axis is a CNC machine designed for precision industrial machining and batch production.
What materials can Trunnion 5 Axis machine?
Trunnion 5 Axis can machine aluminum, steel, cast iron and other materials when configured with suitable spindle, tooling and coolant.
What industries is Trunnion 5 Axis suitable for?
It is suitable for automotive, mold, aerospace, energy and general manufacturing projects depending on configuration.
What is the spindle speed of Trunnion 5 Axis?
Spindle speed depends on the selected configuration. Common options include standard and high-speed spindle packages.
What controller does Trunnion 5 Axis use?
Common controller options include Fanuc, Siemens and Mitsubishi.
Can Trunnion 5 Axis machine steel?
Yes. With the right spindle torque, tooling, coolant and cutting parameters, it can machine steel components.
Can Trunnion 5 Axis machine aluminum?
Yes. The machine can be configured for aluminum machining with suitable spindle speed, tooling and coolant.
Can Trunnion 5 Axis support 4th axis?
Many models can support a 4th axis or rotary table. The final configuration depends on part size and controller options.
Product Reverse Links
Knowledge pages strengthened by this product.
What Is Electronics CNC Machining?
Electronics CNC machining is the process of manufacturing precision electronic components using computer numerical control machines.
Mold Assembly Precision Requirements
Mold assembly precision determines whether all machined components can work together as a stable system. Even if individual parts are high precision, poor assembly will still cause mold failure.
Connector Mold Precision Engineering Guide
Connector molds are essential for producing electronic connectors used in automotive, consumer electronics, and industrial systems. They require extreme precision and high-volume stability.
Thin Wall Aerospace Parts Machining: Ribs, Isogrid and Bulkheads
Quick answer: Aerospace thin-wall machining pushes every challenge to the extreme: aspect ratios above 30:1, walls under 1 mm, tight flatness, and expensive aluminum or titanium billets where late-stage scrap is costly.
What Is a Vertical Machining Center? A Complete Guide to VMC Technology, Selection and Applications
Quick answer: A vertical machining center (VMC) is a computer-controlled milling machine whose spindle is oriented vertically, combined with an automatic tool changer so it can mill, drill, bore and tap in a single setup. It is the most widely used machine tool in modern metalworking.
What Is a Horizontal Machining Center? A Complete Guide to HMC Technology, Pallets and Applications
Quick answer: A horizontal machining center (HMC) is a CNC machine tool with a horizontally oriented spindle, usually paired with an indexing B-axis pallet and an automatic pallet changer, built for high-productivity, multi-face machining of box-type parts with excellent chip evacuation.
Aerospace CNC Machining: A Complete Guide to Materials, Parts, Tolerances and Machine Selection
Quick answer: Aerospace CNC machining is the precision manufacture of flight-critical components from demanding materials such as aluminum, titanium and nickel superalloys, held to tight tolerances and strict quality standards, most often on rigid 5-axis machining centers.
Precision CNC Machining: A Complete Guide to Tolerances, Accuracy and How It Is Achieved
Quick answer: Precision CNC machining is computer-controlled machining that produces parts to tight tolerances and high repeatability, typically in the single-digit-micron to few-hundredths-of-a-millimeter range, by combining a rigid, accurate machine with thermal control, quality tooling, stable workholding and disciplined measurement.
Related Products
Get A Quote For Trunnion 5 Axis
Send your machining requirement.
Tell us your material, surface finish, part dimensions, tolerance, production volume and budget. HYR-CNC will prepare a machine recommendation, technical proposal, quotation and delivery schedule.
